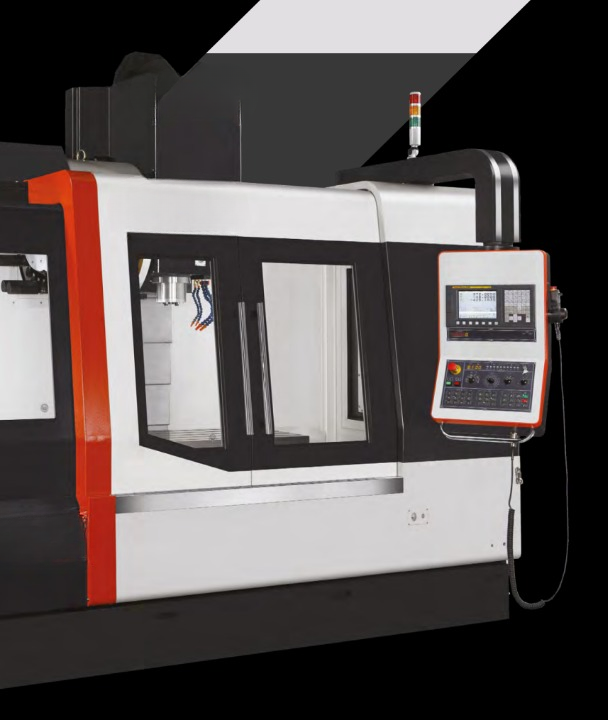

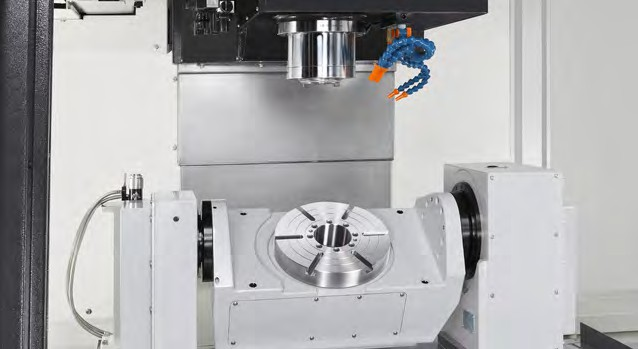

• Good C/P ration (cost/performance) – integrated with A-and C-axis rotary-&-tilting table, a C-frame 3-axis machining center is upgraded to 5-face machining capability, an economical choice for complicated but middle- or small-sized workpiece.

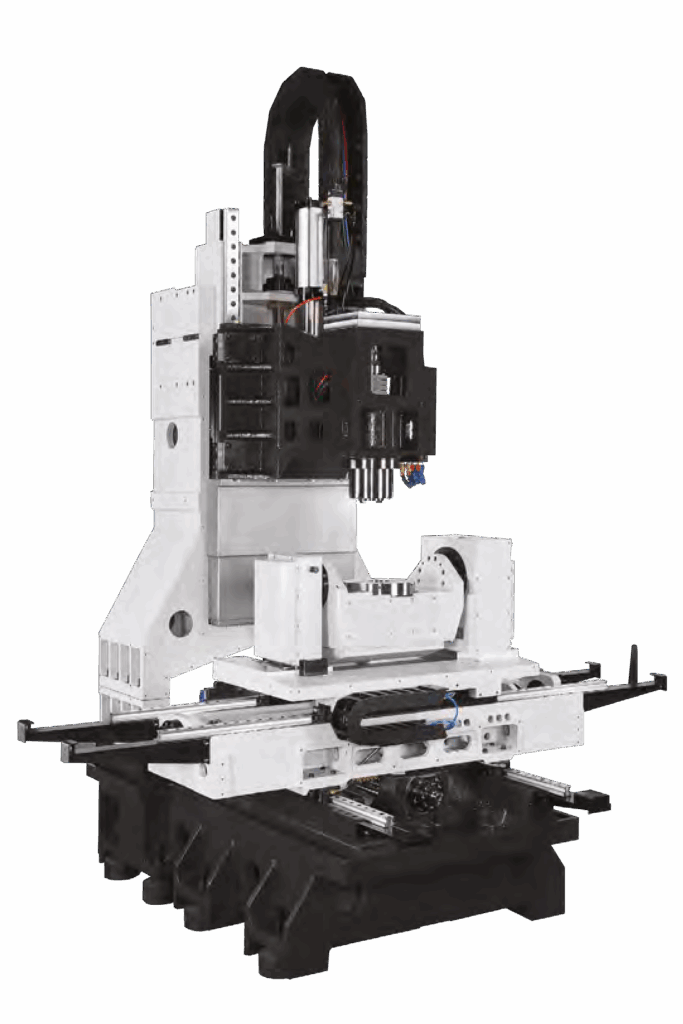

• Stablestructure rigidity – the columns and the machine base are designed with wide spans, and the motor mount, the bearing mount and the casting iron are of one-piece design which greatly increase the integral
• High efficiency – linear guideways for 3 axes are of roller-type, with the characteristics of the fast traverse, lowfriction coefficient and high

The rapid traverse to X- and Y-axis is up to 36 m/min.

• High-performancespindle – the high-speed direct-drive spindle, 15Krpm, as a standard spindle, with 9/15KW spindle motor, can meet various machining demands.

Avoiding from the cumulative deviations resulting from multi machining procedures, it can greatly shorten the machining time to practically achieve high-speed, high-accuracy and high-efficiency requirements.

For the deeper machining on the die-&-mold, it will be easier to find and to set the tools at its suitable angle and position, and obviously shorten the clamping length on the tool by which obtains the optimal cutting efficiency and accuracy.
