3 Axis CNC

The 3-axis CNC has been specially designed for the component and mold processing industry.

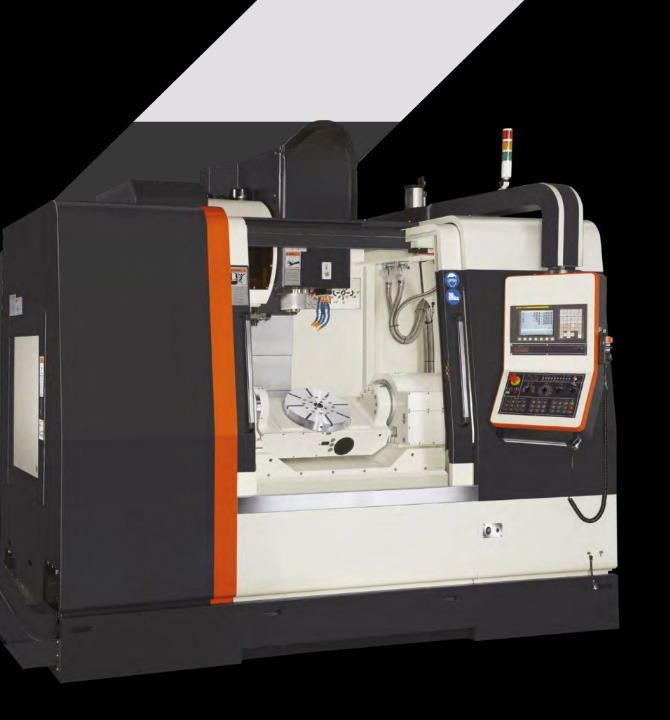

3 Axis CNC Machine

The 3-axis CNC has been specially designed for the component and mold processing industry.

To meet the speed requirements, the 3 axes are equipped with linear guides, which allow an accu- rate processing speed and a rapid displacement up to 48 m / min.

The3 axes are equipped with high precision linear ball
Pre-loadball screws on 3 axes reduce thermal
TheSTEPLESS motors controlled by Encoder allow perfect positioning accuracy.
Theinnovative design of the ATC allows a particularly short tool change (1.31 s at 60 Hz), (from T to T).
Thelubrication system is managed by an automatic control unit that manages the correct dosage of the lubricating oil to avoid over-lubrication and waste.
Theinclined plane design of the frame, together with the cooling system, make chip removal
Themachine is equipped with an integral casing that makes the job cleaner and safer.

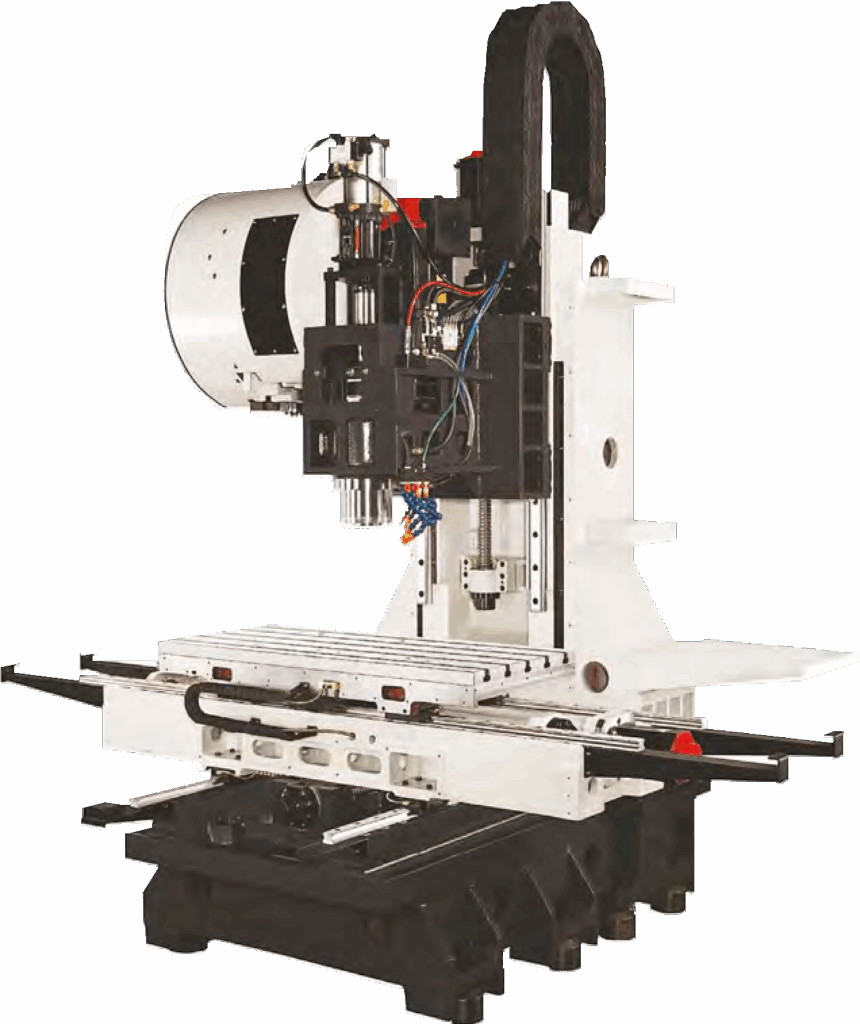

3axes, equipped with linear guides with recirculating balls and 4 guides on the X / Y / Z axis, allow rapid response to movement and great dynamic precision.
Thespindle lubrication and cooling system ensure optimal

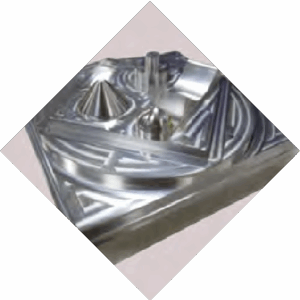

Hood test cutting workpiece Material: Aluminum 7075 Application: High speed working on different angle & surface

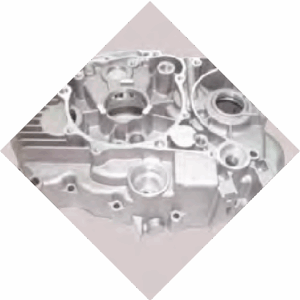

Test cutting workpiece Material: Aluminum 7075 Application: Surface / acute

Standard Accessories

FANUC31iMB numerical control
15,000rpm, BT40, Built-in spindle
24-30seats, BT40 Arm type tool change
Controlledspindle temperature with conditioner
Centralizedlubrication of the axes
Absoluteaxis position
Airblower for cleaning the spindle cone
Refrigerantsystem for workpiece machining
Totalaccident-prevention protection of the machine
Coolantgun and air gun for cleaning pieces
Coolanttank and liquid cleaning system
Carpetchip conveyor
Workarea lighting lamp
Operatorthree-lamp warning light
Electricalcabinet conditioner
De-oilerfor coolant
Remoteelectronic handwheel
Ethernetinterface
Levelingfeet
Toolboxfor maintenance
Operatingmanuals and wiring diagram
Machinebuilt in compliance with CE standards

Optional Accessories

HEIDENHAINTNC620/TNC640

controller

Spindle 20,000 rpm, HSKA63, Built-in type
Toolmagazine with 60 seats
Coolantthrough the spindle (25 bar)
Opticallines on three axes
Dredgingchip conveyor
Minimalair/oil lubrication system
Oilmist aspiration system
Automatic presetting tool measurement system
Automatic probe piece measurement system
Rotatingtable (4th axis)

Workpiece measurement system

Coolant through spindle

4th axis rotary table

		Model #1	Model #2	Model #3
Travels
X-Axis	mm	860	1060	1270
Y-Axis	mm	520	520	660
Z-Axis	mm	610	610	610
Distance from spindle nose to table surface	mm	115-725	115-725	150-760
Table
Table size	mm	1000 x 520	1160 x 520	1500 x 660
Max load of table	kg	500	650	1360
T-slot (width x pitch x number)	mm	18 x 100 x 5	18 x 100 x 5	18 x 100 x 6
Spindle
Spindle type	–	Belt type	Belt type	Direct-drive
Max spndle speed	rpm	12000	12000	12000
Motor power	kW	7,5 / 15	7,5 / 15	7,5 / 15
Spindle taper	–	BT40	BT40	BT40
Feed
Rapid traverse (X-Y-Z)	m/min	36 / 36/ 24	36 / 36/ 24	36 / 36/ 24
Cutting feedrate	mm/min	1-12000	1-12000	1-12000
Motor power (X-Y-Z)	kW	1.8/3.0/2.5	1.8/3.0/2.5	4.0/4.0/4.5
Tool change
ATC Type	–	Arm type	Arm type	Arm type
Tool holder capacity	nr.	24	24	30
Max. tool diameter	mm	80 / 150	80/ 150	80/ 125
Max tool lenght	mm	300	300	300
Max weight of tool	Kg	7	7	7
Tool holders cone	–	BT40	BT40	BT40
Tang	–	MAS 407	MAS 407	MAS 407
Dimensions and utilities
Pneumatic pressure	kgf/cm²	6	6	6
Electrical power consumption	kVA	30	30	35
Machine net weight	Kg	6000	6200	9000
Machine dimensions (LxWxH)	mm	4629 X 3743 X 3099	4957 X 3743 X 3099	5280 X 3550 X 3100

Tool Length measurement system

Oil skimmer

Oil mist collector

Chip conveyor / Car
